ELEVATORS

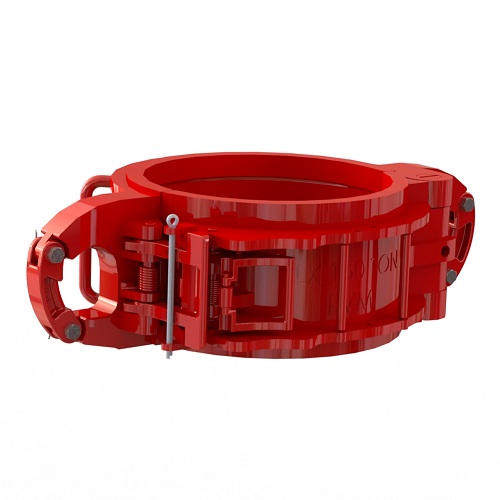

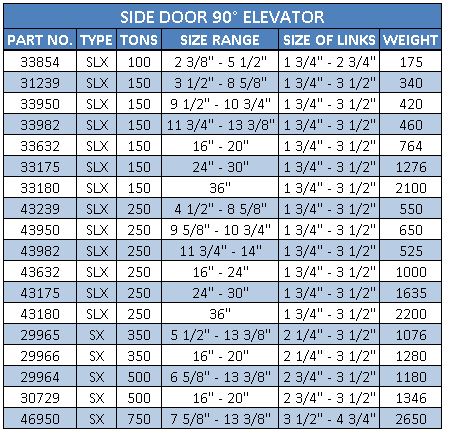

SIDE DOOR 90° ELEVATOR - SLX & SX
The SLX and SX elevators are designed for square shoulder tubing and casing size 2-3/8" to 36" with load rating from 100 to 750 ton. The shielded safety latch protects the latch from accidentally opening. To open the SLX, simply pull the safety pin, pull the latch lock handle out, and swing the elevator halves apart. Both latches operate from a single handle and automatically re-latch when the elevator door is closed.

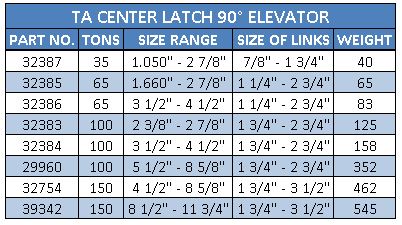

TA CENTER LATCH 90° COLLAR TYPE ELEVATOR
BVM TA center latch elevators are used for handling plain, upset tubing, drill collar, and casing witha square shoulder. These elevators feature a safety double latch system to reduce accidental opening. The BVM Center Latch Elevators come in sizes ranging from 1.05” through 11 3/4”, with capacity of 35, 65, 100, & 150 tons. These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.

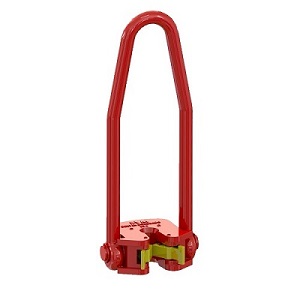

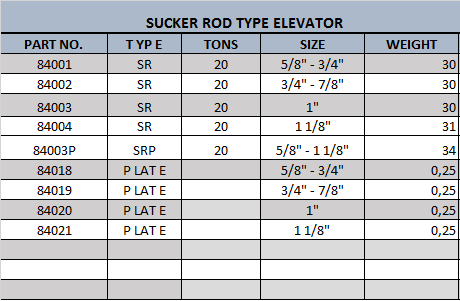

SUCKER ROD TYPE ELEVATOR
BVM "SR" Sucker Rod Elevator is available to handle rod sizes from 5/8" through 1 1/4". The Elevator is designed for versatility in workovers and well servicing operations, with an API rated capacity of 20 Tons. The "SR" Elevator has a spring loaded latch and the rod can only be released by the operator. The bail and body is made from alloy steel and heat treated for maximum strength. All steel specifications are certified.

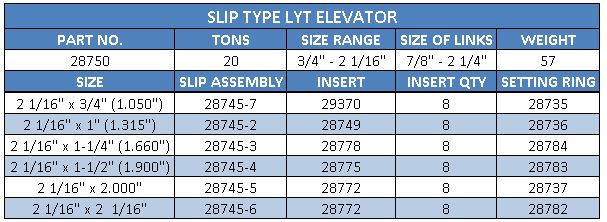

SLIP TYPE ELEVATOR - LYT
BVM Slip Type center latch elevators are a combination tool using 4 slips with reducing inserts that provide a secure grip on the tubing or pipe with the minimum marking of the pipe. These elevators feature a safety double latch system to reduce accidental opening. The LYT load rating is 20 tons and size ranges from 3/4" (1.050") to 2 1/16". These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.

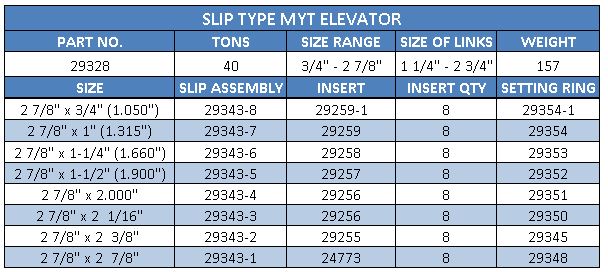

SLIP TYPE ELEVATOR - MYT
BVM Slip Type center latch elevators are a combination tool using 4 slips with reducing inserts that provide a secure grip on the tubing or pipe with the minimum marking of the pipe. These elevators feature a safety double latch system to reduce accidental opening. The MYT load rating is 40 tons and size ranges from 3/4" (1.050") to 2 7/8". These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.

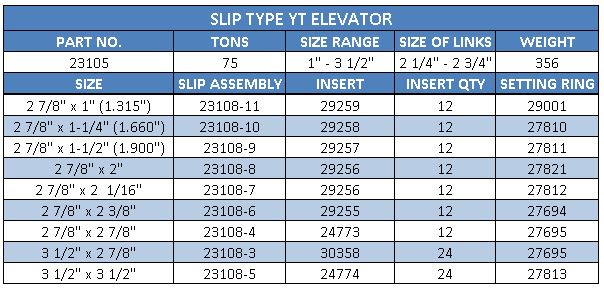

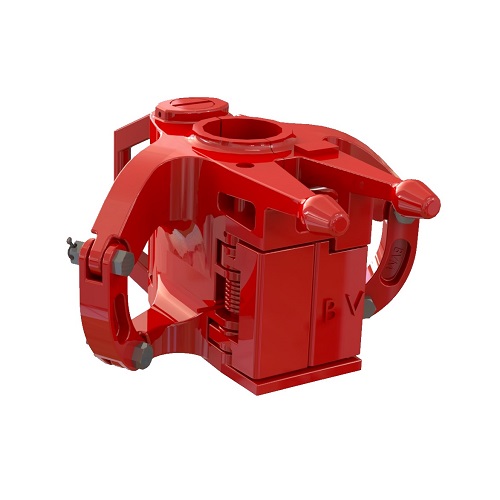

SLIP TYPE ELEVATOR - YT
BVM Slip Type center latch elevators are a combination tool using 4 slips with reducing inserts that provide a secure grip on the tubing or pipe with the minimum marking of the pipe. These elevators feature a safety double latch system to reduce accidental opening. The YT load rating is 75 tons and size ranges from 1" (1.315") to 3 1/2". These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.

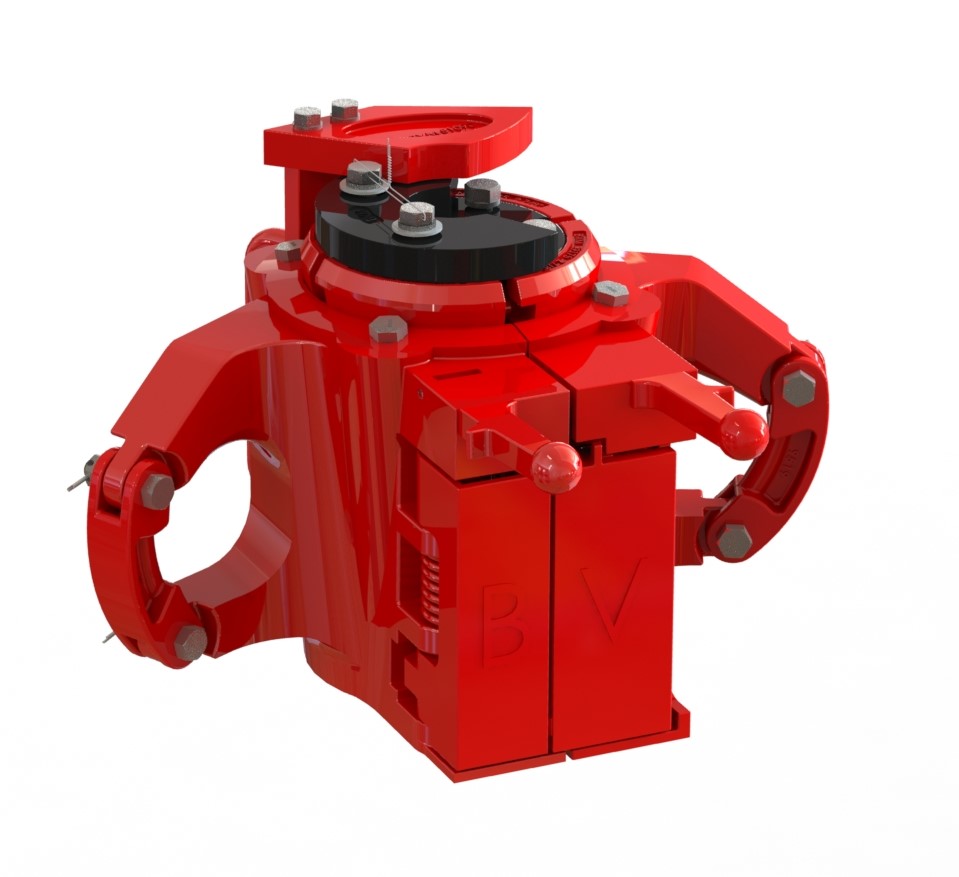

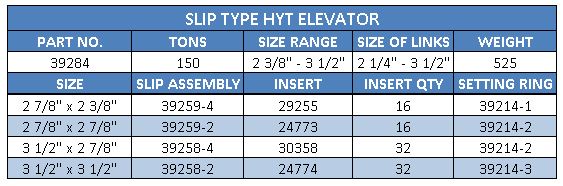

SLIP TYPE ELEVATOR - HYT
BVM Slip Type center latch elevators are a combination tool using 4 slips with reducing inserts that provide a secure grip on the tubing or pipe with the minimum marking of the pipe. These elevators feature a safety double latch system to reduce accidental opening. The HYT load rating is 150 tons and size ranges from 2 3/8" to 3 1/2". These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.

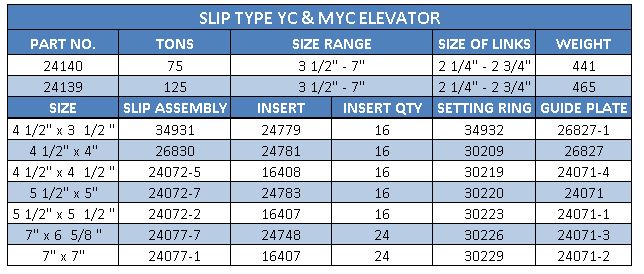

SLIP TYPE ELEVATOR - YC & MYC
BVM Slip Type center latch elevators are a combination tool using 4 slips with reducing inserts that provide a secure grip on the tubing or pipe with the minimum marking of the pipe. These elevators feature a safety double latch system to reduce accidental opening. The YC load rating is 75 & the MYC load rating is 125 tons and both have size range from 3 1/2" to 7". These elevators are made from alloy steel; load tested and are magnetic particle inspected. Certified to API 8C.
